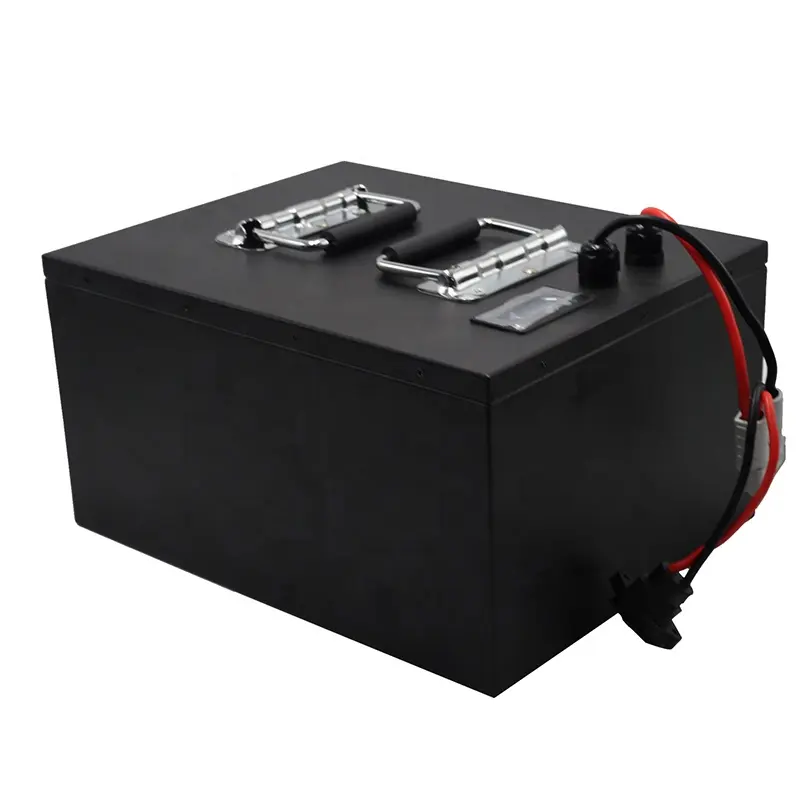

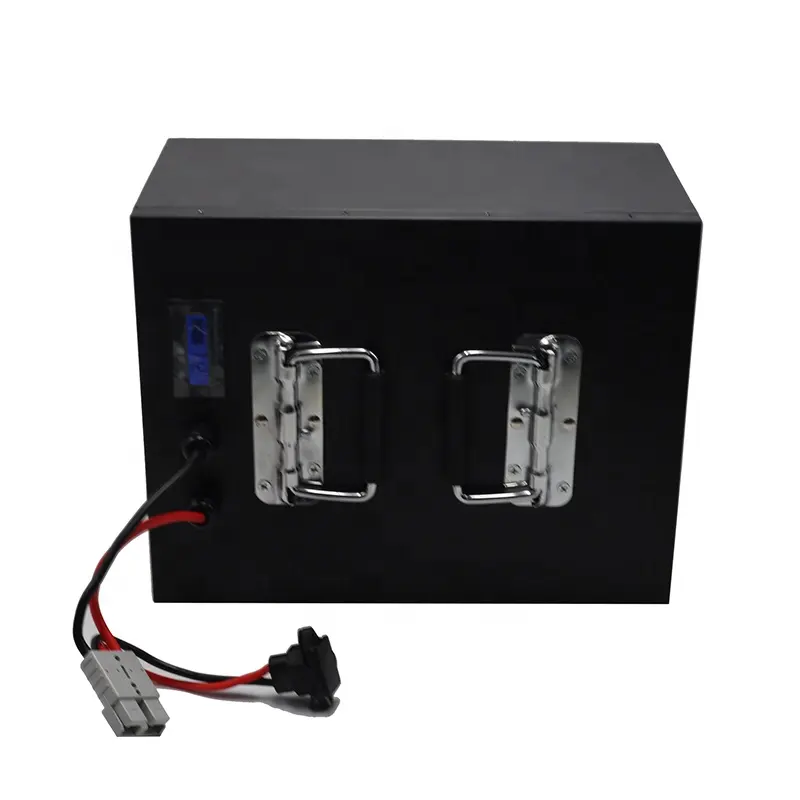

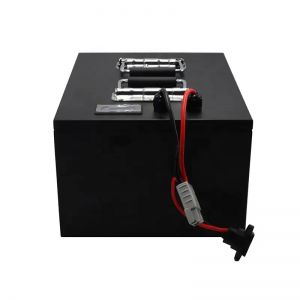

Prispôsobená LiFePO4 batéria 72v 60ah lítium-iónová batéria pre elektrické vozidlo pre elektromobily

2023-06-06 02:13

špecifikácia

Názov značky	VŠETKO V JEDNOM
Model	AIN7260
záruka	5 rokov
Menovité napätie	76.8V
Nominálna kapacita	[email protected]/customize
energie	4416Wh
Vnútorná odolnosť	≤50mΩ
Život cyklu	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Samovybíjanie	≤3,5% mesačne pri 25 ℃
Max. Nabíjacie napätie	87.6 V
Režim nabíjania	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Nabíjací prúd	30A
Max. Nabíjací prúd	60A
Vybíjací prúd	30A
Max. discharge Continuous Current	60A
Max. Impulzný prúd	120A(<3S）
Vybíjacie medzné napätie	60V
Teplota nabíjania	0 ℃ až 45 32 (32 ℉ až 113 ℉) pri 60 ± 25% relatívnej vlhkosti
Vypúšťacia teplota	-20 ℃ až 60 ℃ (-4 ℉ až 140 ℉) pri 60 ± 25% relatívnej vlhkosti
Skladovacia teplota	0 ℃ až 45 32 (32 ℉ až 113 ℉) pri 60 ± 25% relatívnej vlhkosti
Odolnosť voči vodnému prachu	IP55
Bunka a formát	LFP  60AH 24S1P/customize
Plášť	Metal Case
Rozmer (L * W * H * TH)	prispôsobiť
závažia	50kg
Terminál	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Metóda nabíjania	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
certifikát	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

pripomienka

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

prihláška

Naša továreň

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Balenie a preprava

obal

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Doprava

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

Otázka: Ako mám platiť? Aké spôsoby platby akceptujete?
A: T/T, PayPal, Western Union.

Otázka: Je vzorová objednávka prijateľná?
Odpoveď: Áno, pre väčšinu batérií sú vzorové objednávky na testovanie kvality rozumné a prijateľné.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. V prípade poškodenia, ktoré je spôsobené vybitím/zvarením, akumulátorový blok bez ochrany BMS spôsobený nabíjaním.
