51.2v 65Ah golf cart lifepo4 lithium ion battery pack deep cycle IP67

2024-06-28 03:25

špecifikácia

Model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Menovité napätie	51.2V	51.2V	51.2V	51.2V	76.8V
Nominálna kapacita	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680 Wh	5370Wh
Maximum Charge Voltage	58,4V	58,4V	58,4V	58,4V	87,6V
Maximálny nabíjací prúd	100A	100A	60A	150A	100A
Maximálny trvalý vybíjací prúd	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Vybíjacie medzné napätie	43,2V	43,2V	43,2V	43,2V	43,2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Teplota nabíjania	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Vypúšťacia teplota	-20 ~+60 ℃	-20 ~+60 ℃	-20 ~+60 ℃	-20 ~+60 ℃	-20 ~+60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	> 6000	> 6000	> 6000	> 6000	> 6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Úroveň ochrany	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
závažia	48.3kg	49kg	32 kg	71kg	72.8kg
Communication Protocol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



Kľúčové vlastnosti

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

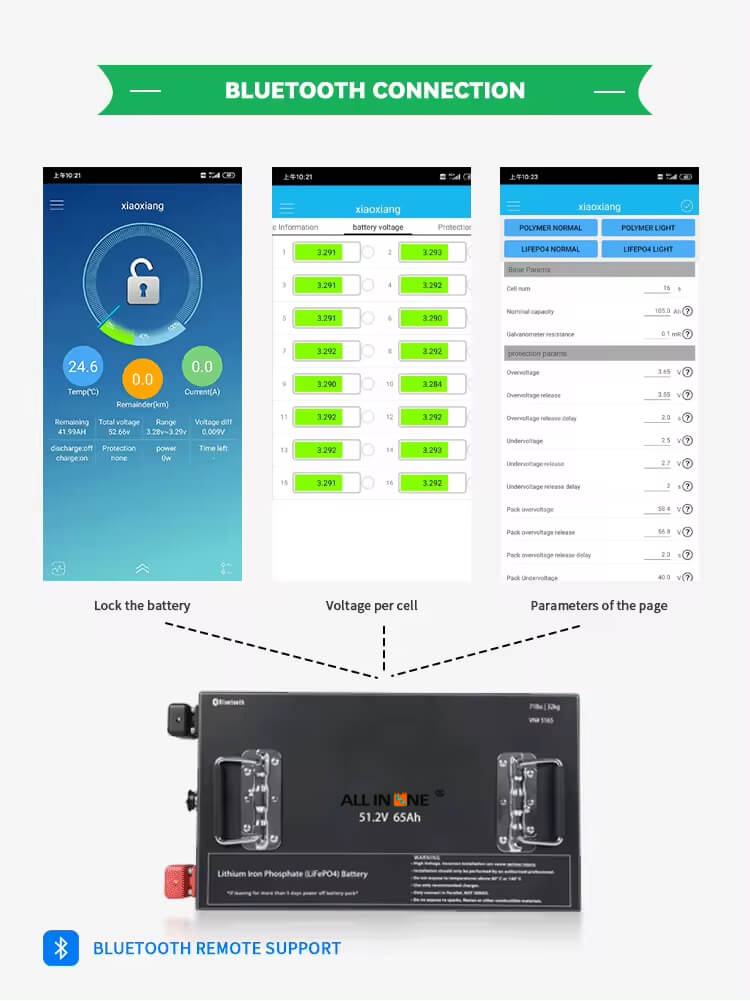

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Sľubujeme
1. Všetky výrobky budú testované 100% Pred odoslaním sa uistite, že výrobok nemá žiadne problémy s kvalitou.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



prihláška

Naša továreň

Balenie a preprava

FAQ

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

Q2: Poskytujete popredajný servis?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 Aká je výhoda vašej spoločnosti?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

Q4: Prijímate OEM / ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Všeobecne povedané, asi 25-30 dní v závislosti od rôznych položiek po získaní zálohy a potvrdení o vzorkách.

Q6:Are your battery real capacity?
A6: Všetky naše batériové články triedy A, 100% nová a skutočná kapacita.

Q7: Ste továreň alebo obchodná spoločnosť?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Otázka 8: Aký druh certifikátov máte?
A8: Môžeme poskytnúť CE, ROHS, FCC, IEC62133, MSDS, UN38.3, ak je vaše objednávkové množstvo veľké.
